Line (L)
Generate a line chart element for use in InForm Line datasets can be combined with bar or scatter datasets using the Assemble Chart (AC) component.

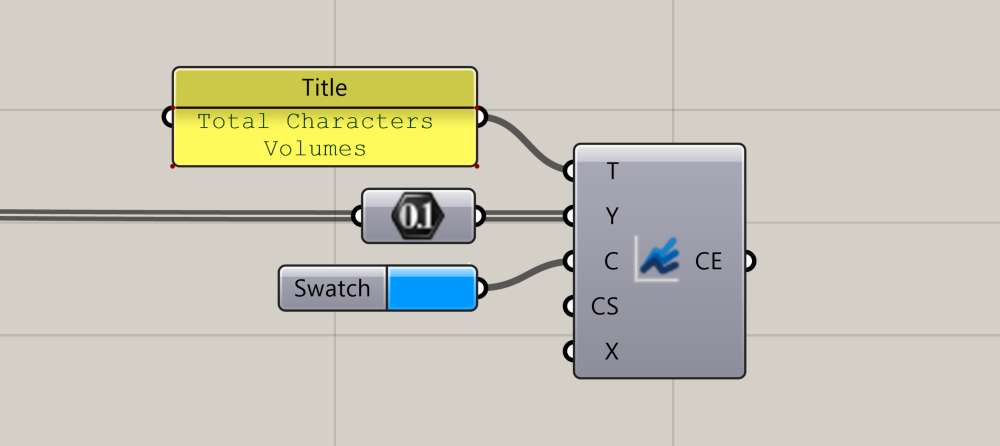

📸 Component Screenshot
📂 Component Location
Tab: 3. Charts
📝 Description
The Line (L) component creates a line dataset for chart visualization in InForm It accepts X- and Y-values, optional colour control, and advanced JSON overrides for Chart.js–compatible customizations.
📁 Example File
🔌 Inputs
| Abbrev. | Full Name | Type | Description |
|---|---|---|---|
| T | Title | Text | Label for the line dataset. |
| Y | Y | Number | List of Y-values defining the curve. |
| C | Colour | GH Colour | Optional line colour (RGB). |
| CS | Custom Settings | JSON | Advanced dataset overrides. Ref: https://www.chartjs.org/docs/latest/charts/line.html |
| X | X | Number | Optional list of X-values. If absent, indices are used. |
🔄 Outputs
| Abbrev. | Full Name | Type | Description | Suggested Connections |
|---|---|---|---|---|
| CE | Chart Element | InForm Line Chart | Line dataset for chart assembly. | Connect to Assemble Chart (AC) (3. Charts) to display the line chart in InForm |
