Analysis Material (AM)
Create a predefined material optimized for analysis visualization in InForm The material supports vertex colours, uses analysis-friendly shading, and ensures clear, readable mesh output.

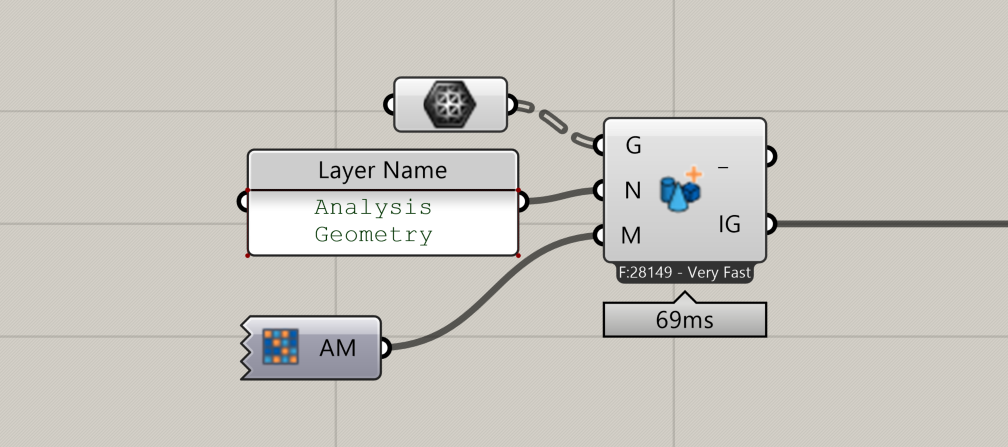

📸 Component Screenshot
📂 Component Location
Tab: 2. Geometry
📝 Description
The Analysis Material (AM) component generates a default InForm material tailored for analysis workflows. It ensures that meshes display correctly with analysis colours, disables unnecessary shading, and fully supports vertex-colour-driven visualizations.
📁 Example File
🔌 Inputs
This component has no inputs.
🔄 Outputs
| Abbrev. | Full Name | Type | Description | Suggested Connections |
|---|---|---|---|---|
| AM | Analysis Material | InForm data | Material optimized for analysis-style mesh visualization. | Connect to the Material (M) input of the Geometry Layer (GL) component. |
